AudioTekne

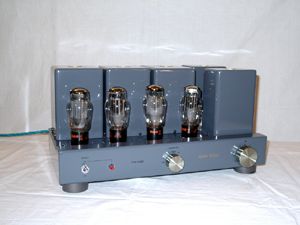

TFM-2000 6AS7G A1PP Stereo Pre-main amplifier


It is the pre-main amplifier new type with very high cost performance.

tfm-2000

ATT which used non-losing winding ratio type large super permalloy core is adopted as this pre-main amplifier.

Furthermore, by composition of all stage transformer combination, fixed bias, and Class A push pull circuit, the insertion transfer loss of a minute signal is improved and it excels in the performance and cost performance which extract a group in respect of tone quality.

It is the pre-main amplifier new type with very high cost performance.


Technical Characteristics

Vacuum Tube Stereo Pre-main amplifier

Input : CD,TUNER,TAPE,AV,AUX
Power Output : 6W ‚˜ 2
Harmonic Distortion : Less Than 5.0% / 6W
Frequency Response : 20Hz...20KHz +/- 3dB
Residual Noise : Less Than 1mV 8ohm
ATT : Winding Ratio Type ATT
Power Consumption : 180VA
Power : AC100V, 50/60Hz
Dimension : W44.5 x H22.5 x D25.0cm
Weight : 24.5Kg
